3mm SCALE TRACK GAUGES

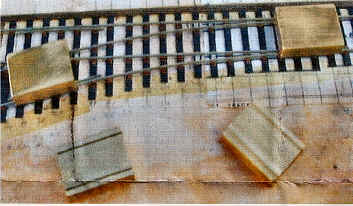

Stainless steel NMRA style track gauges.  All take code 60 BH and code 80 FB unless stated.

14.15mm finescale2

£3.50

15.75mm finescale (also 9mm)

£4.00

21.0625mm finescale (also 14.125mm)

£4.50

For those people who do not know how these are used artists impressions are shown below.

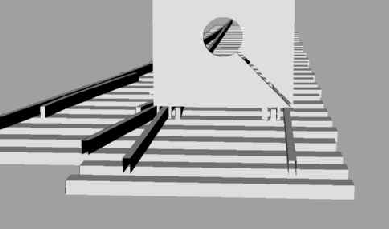

The gauge being used to set the track gauge.

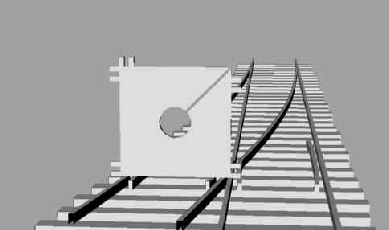

The gauge being used to set the check rail gauge.

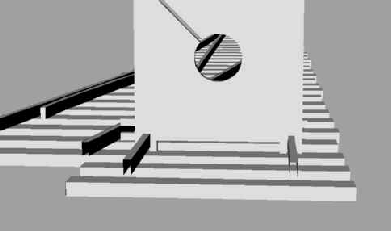

The gauge being used to gauge the flangeway clearance.

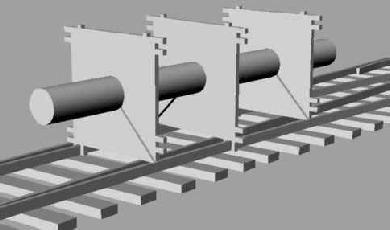

Three gauges mounted on a threaded rod (not shown in detail) being used as a three point gauge on a curve.

STAINLESS STEEL THREEPOINT GAUGE use  on curved track to hold rail, and get correct gauge widening.

14.125mm gauge finescale

£16.50

MINT GAUGE

This is a track gauge developed to assist in maintaining the gauge through the switch blades whilst construction is in progress, The gauge has no legs with which to grip the rail head, it simply sits on top. The two lugs are positioned to be a sliding fit in the track and through the minimum flangeway. It acts in the same way as the three legged gauge to give gauge widening, irrespective of which way round it is.

It has been found that the gauge can be slid through any piece of track either plain or point and crossing. If the gauge of the track is correct it will slide along sweetly, under gauge will cause it to jam whilst over gauge will allow it to move from side to side. It will check that the flangeway widths are not too narrow, whilst removing the gauge from the rails and inserting only one lug, will check if the flangeway is too wide.

It will find the vertically or horizontally misaligned rail joints as well as the misalignment of Vee and wing rail.

A versatile gauge to complement the three legged and NMRA style rail gauges you already have.

14.125mm mint gauge

£14
